Portfolio

Stripe Foilsensor

Stripe foil sensors can be used together with our Measurement Device can be used immediately for tests and measurements. Unpack, plug in and start measuring.

Customized Foliensensoren

Do you need sensors tailored to your application? We are flexible - just like our materials and production partners. Our team is sure to find the right solution for your application.

SMD Foilsensor

Simply stick our SMD foil sensors onto the end of the conductor track
and you have a sensor system. Es ist kein weiterer Bearbeitungsprozess nötig.

Welcome to addSensors - your partner for foil-based sensors

Dive into the world of foil-based sensors and get to know the advantages of addSensors technology. addSensors offer you an easy way to test foil-based sensors and to read out, transfer and visualize data sets. Our standard fits your application and you need larger quantities? Please contact us!

Not found the right one? Our portfolio is constantly expanding. Further measurands and basic materials are already under development. You would like to evaluate the data yourself? Our connector boards help you to connect to existing systems. You need sensors tailor-made for your application? We are flexible - just like our materials and production partners. Our team is sure to find the right solution for your application.

Functional sample SMD foil sensor pH – pH-01

The SMD foil pH electrode is designed for electrochemical, potentiometric determination of pH in liquid or moist samples when combined with a second, reference electrode. The readings are taken by measuring the open circuit potential/voltage between both electrodes via high resistivity voltage measurement electronics. Potential (E) and pH have a linear relationship in the operating range of pH 5 to pH 9. The pH value of an unknown analyte solution can be calculated using the pre-determined slope and an offset E0 value, which could be determined by measuring the potential in a calibration buffer of known pH value. Once used, the sensor must be kept hydrated for further application and not allowed to dry out.Datasheet:Datasheet_addsensors_SMD_pH01_eng.pdfDesign / User Manual:Design-Setup-Guide.pdf (addsensors.com)

Content: 5 Stück (€9.00* / 1 Stück)

€45.00*

Functional sample SMD foil sensor reference electrode - RE-01

The SMD foil reference electrode RE-01 is designed for electrochemical, potentiometric measurements in liquid or moist samples when combined with a second, ionselective sensing electrode.The readings are taken by measuring the open circuit potential/voltage between both electrodes via high resistivity voltage measurement electronics.Once used, the sensor must be kept hydrated for further application and must not allowed to dry out.Datasheet:Datasheet_addsensors_SMD_RE01_eng.pdfDesign / User Manual:Design-Setup-Guide.pdf (addsensors.com)

Content: 5 Stück (€9.00* / 1 Stück)

€45.00*

Functional sample SMD foil sensor K (Potassium) – K-01

The SMD foil potassium electrode K-01 is designed for the electrochemical, potentiometric determination of K+ in liquid or moist samples in combination with a reference electrode. The measured values are determined by measuring the open-circuit potential/open-circuit voltage between the two electrodes using high-impedance voltage measurement electronics.As this is a prototype functional model, there is no preliminary data sheet yet. You will receive a corresponding prototype performance results report when the item is delivered. Once used, the sensor must be kept hydrated for further application and must not allowed to dry out.Datasheet:Datasheet_addsensors_SMD_K01_eng.pdfDesign / User Manual:Design-Setup-Guide.pdf (addsensors.com)

Content: 5 Stück (€9.00* / 1 Stück)

€45.00*

Functional sample SMD foil sensor Na (Sodium) – Na-01

The SMD foil sodium electrode Na-01 is designed for electrochemical, potentiometric determination of Na+ in liquid or moist samples when combined with a reference electrode. The readings are taken by measuring the open circuit potential/voltage between both electrodes via high resistivity voltage measurement electronics (see example circuit below). Potential (E) and sodium concentration have a linear relationship in the operating range of 100 µM to 1 M. The sodium concentration of an unknown analyte solution can be calculated using the pre-determined slope and an offset E0 value, which can be determined by measuring the potential in a calibration solution of known sodium concentration. Once used, the sensor must be kept hydrated for further application and must not allowed to dry out.Datasheet:Datasheet_addsensors_SMD_Na01_eng.pdfDesign / User Manual:Design-Setup-Guide.pdf (addsensors.com)

Content: 5 Stück (€9.00* / 1 Stück)

€45.00*

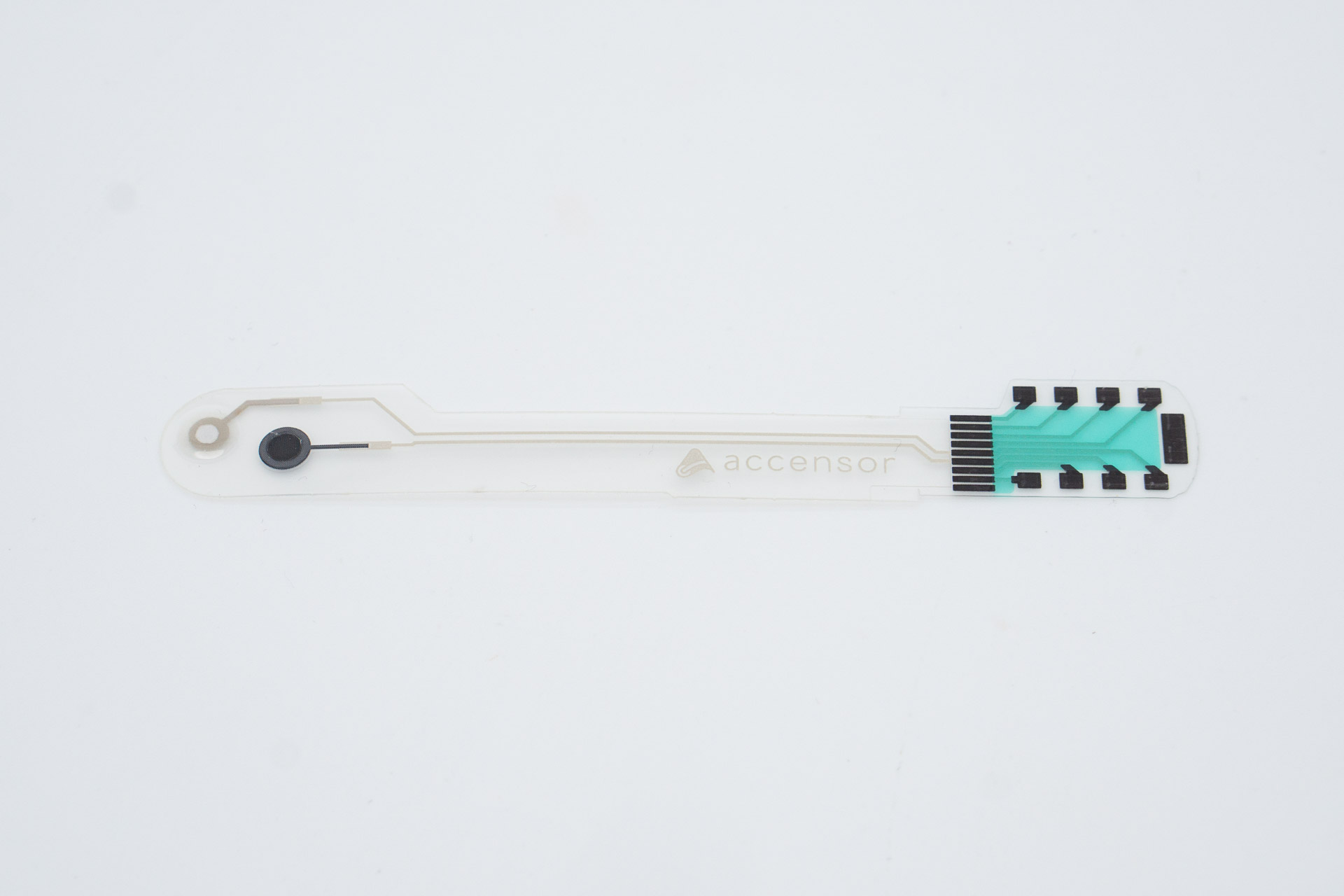

Stripe foil sensor pH-303

The Stripe foil sensor pH-303 is a foil sensor with electrodes for electrochemical determination of pH of samples. Our pH-sensor consists of two electrodes (a pH-sensitive and a non-sensitive Ag/AgCl reference electrode) on a transparent PET foil. The readings are taken by measuring the open circuit potential/voltage between both electrodes. Potential (E) and pH have a linear relationship (between the operating range of pH 5.5 to pH 10) so the pH of an unknown analyte solution can be calculated using the pre-determined slope and an offset E value (E0 determined by measuring the potential in a calibration buffer of known pH). The reference electrode and overall sensor can be used in analytes with different chloride concentrations thanks to a solid-state electrolyte layer. Once used, the sensor must be kept hydrated for further application and not allowed to dry out.Product includes:1 x Stripe foil sensor pH-303Datasheet:Datasheet_addsensors_stripe_pH_S-303.pdf

€32.00*

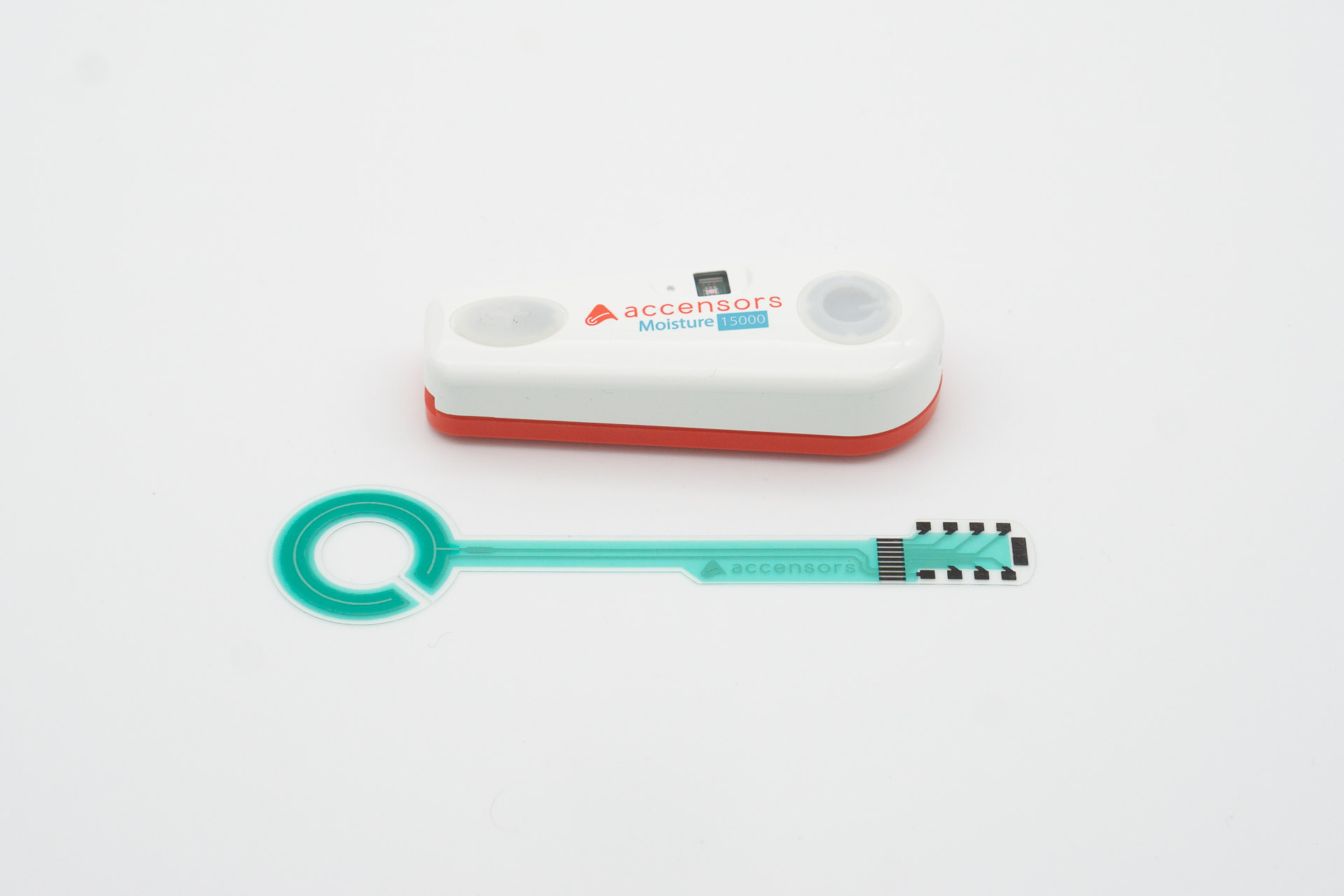

device moisture 15000-600

The device moisture 15000-600 provides an interface to record data from our associated sensors. Data is transmitted wirelessly and stored in an internal memory. Additionally, the device records environmental parameters such as temperature, air humidity, motion, brightness and barometric pressure. The measurement data can be read out and visualized via app. Product includes:1 x device moisture 15000-6001 x USB 2.0 - USB-C charging cable

€499.00*

device ion selective 1140 K-300

The device ion selective 1140 K-300 provides an interface to record data from our associated sensors. Data is transmitted wirelessly and stored in an internal memory. Additionally, the device records environmental parameters such as temperature, air humidity, motion, brightness and barometric pressure. The measurement data can be read out and visualized via app.Product includes:1 x device ion selective 1140 K-3001 x USB 2.0 - USB-C charging cable

€499.00*

Stripe foil sensor potassium-601

The stripe foil sensor Potassium-601 is a foil sensor with electrodes for the electrochemical determination of the potassium value. Our potassium sensor consists of two electrodes (a K-sensitive and a non-sensitive Ag/AgCl reference electrode) on a transparent PET foil. The measured values are determined by measuring the open-circuit potential/voltage between the two electrodes. The reference electrode and the entire sensor can be used with analytes with different chloride concentrations thanks to a solid-state electrolyte layer. After use, the sensor must remain hydrated for further use and must not dry out.To evaluate the data, a connection can be established using our Device ion selectiv D-300. Alternatively, the data can be evaluated using ZiF contacting. The contact surfaces are provided with oxidation protection. The data given refers to the use of the sensor in combination with the device Ion selectivity D-300. The measured potential (in mV) is displayed, or if the sensor is calibrated (one-point software calibration at 21 °C or two-point calibration at other temperatures), the concentration K+ can be output.Product includes:1 x Stripe foil sensor potassium-601Datasheet:Datasheet_addsensors_stripe_potassium_S-601.pdf

€32.00*

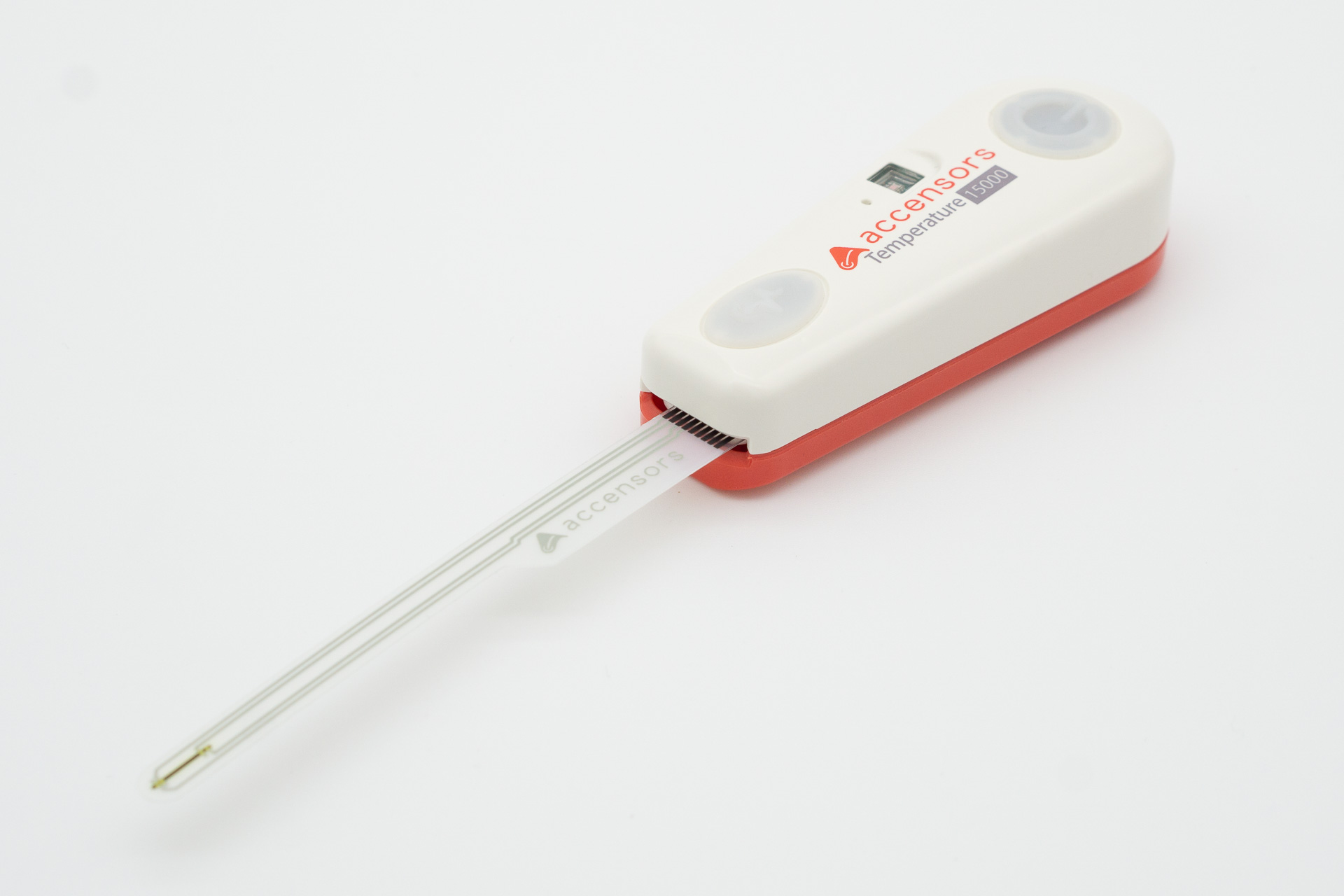

device temperature 15000-100

The device temperature 15000-100 provides an interface to record data from our associated sensors. Data is transmitted wirelessly and stored in an internal memory. Additionally, the accensors device records environmental parameters such as temperature, air humidity, motion, brightness and barometric pressure. The measurement data can be read out and visualized via the app.Product includes:1 x device temperature 15000-1001 x USB 2.0 - USB-C charging cable

€499.00*

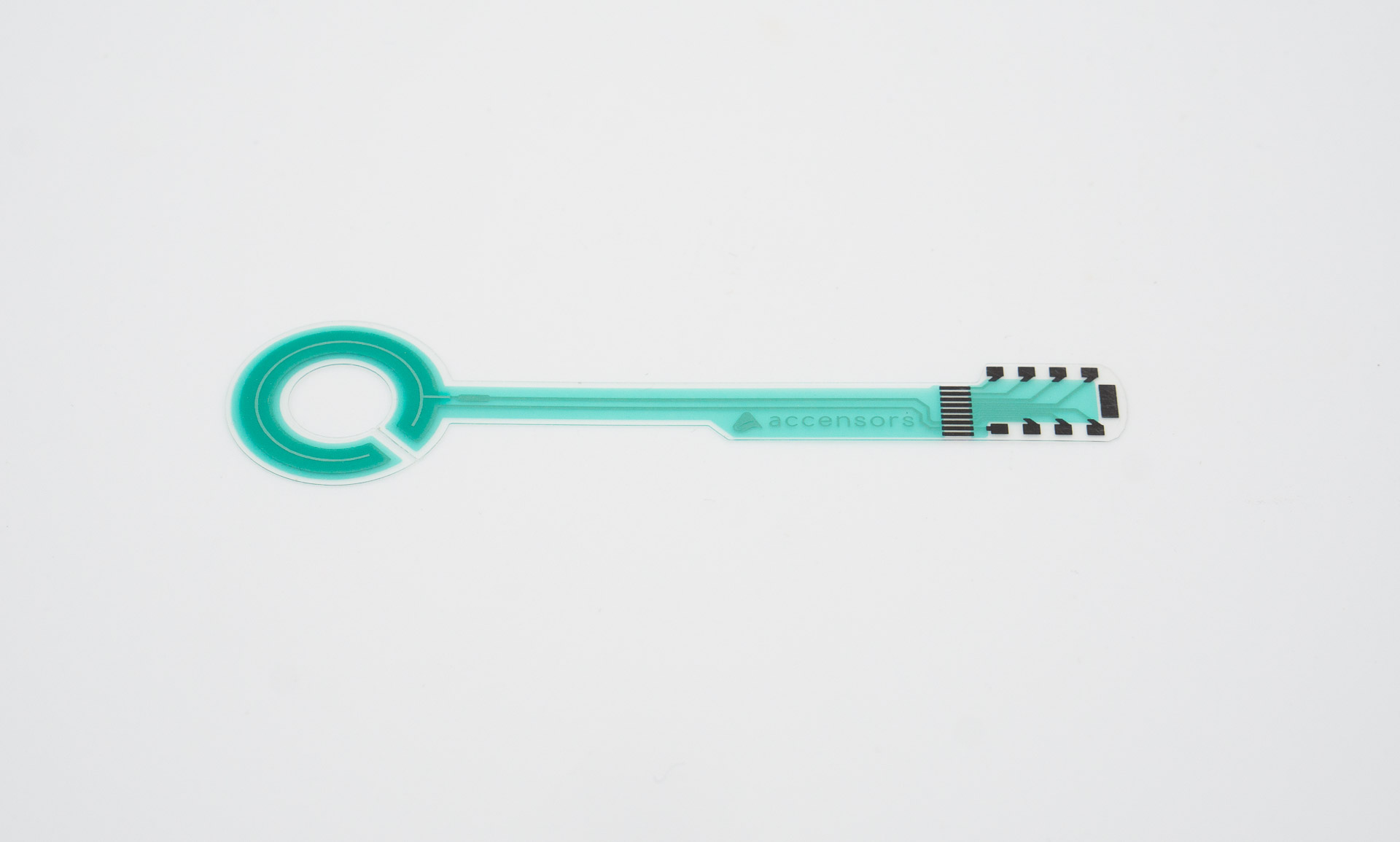

Stripe foil sensor moisture-501

The Stripe foil sensor humidity-501 is a foil sensor with electrodes for capacitive humidity measurement. The base material is PET with printed insulation. To evaluate the data, a connection can be established using the humidity 15000-600 device. Alternatively, the data can be evaluated using the ZiF contacting. The contact surfaces are provided with oxidation protection. The specified data refers to the use of the sensor in combination with the device humidity 15000-600. The measuring output will display the wet area in digits.Product includes:1 x Stripe foil sensor moisture-501Datasheet:Factsheet_addsensors_stripe_moisture_S-501.pdf

€22.00*

device pressure 1200-200

The Device pressure 1200-200 is the interface for recording the data from our associated pressure sensors. The data is both transmitted wirelessly and stored in the local memory. The device also records the environmental parameters of your measurement in the form of temperature, humidity, movement, brightness and barometric pressure. The measurement data can be read out and visualized using the app. Product includes:1 x device pressure 1200-2001 x USB 2.0 - USB-C charging cable

€499.00*

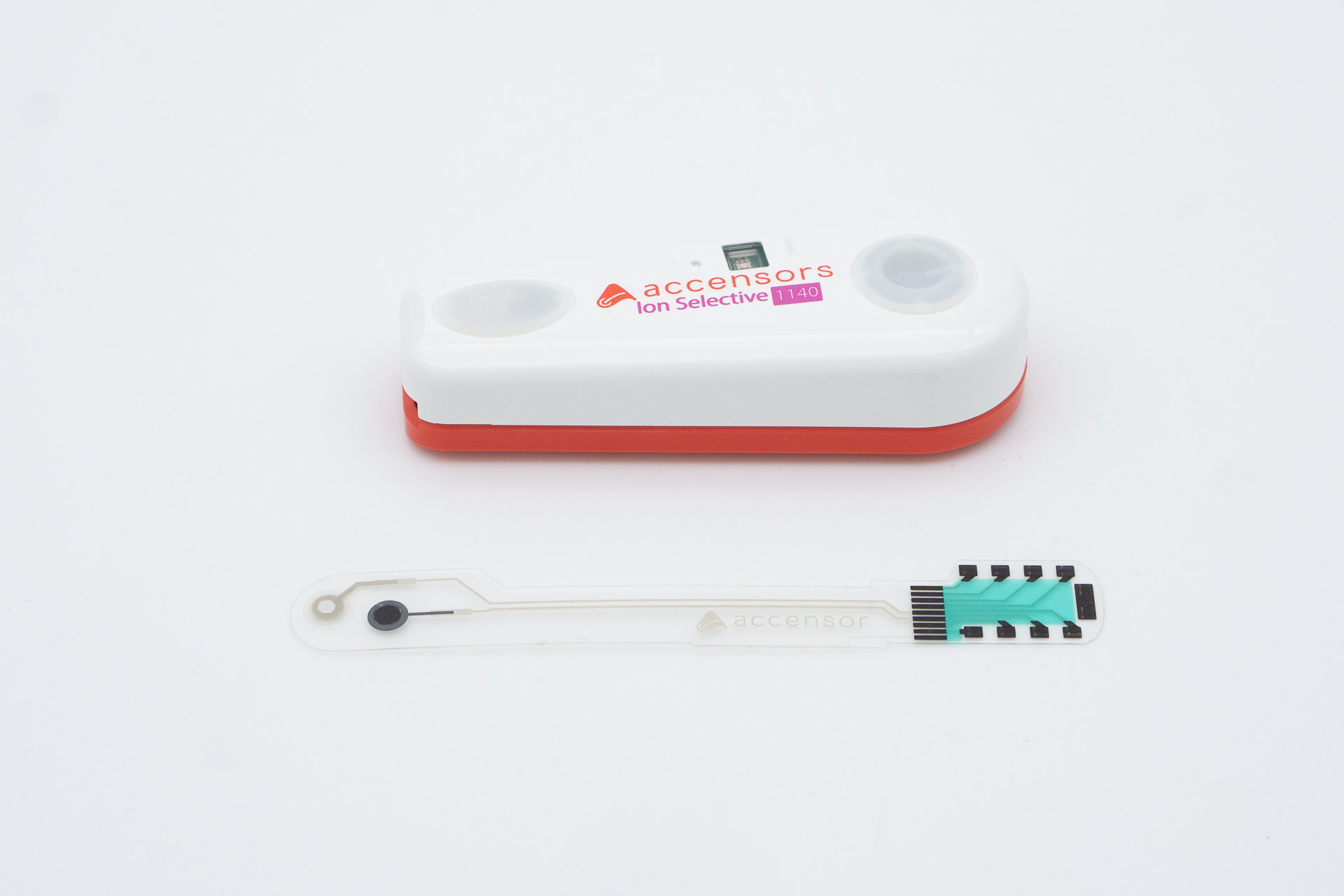

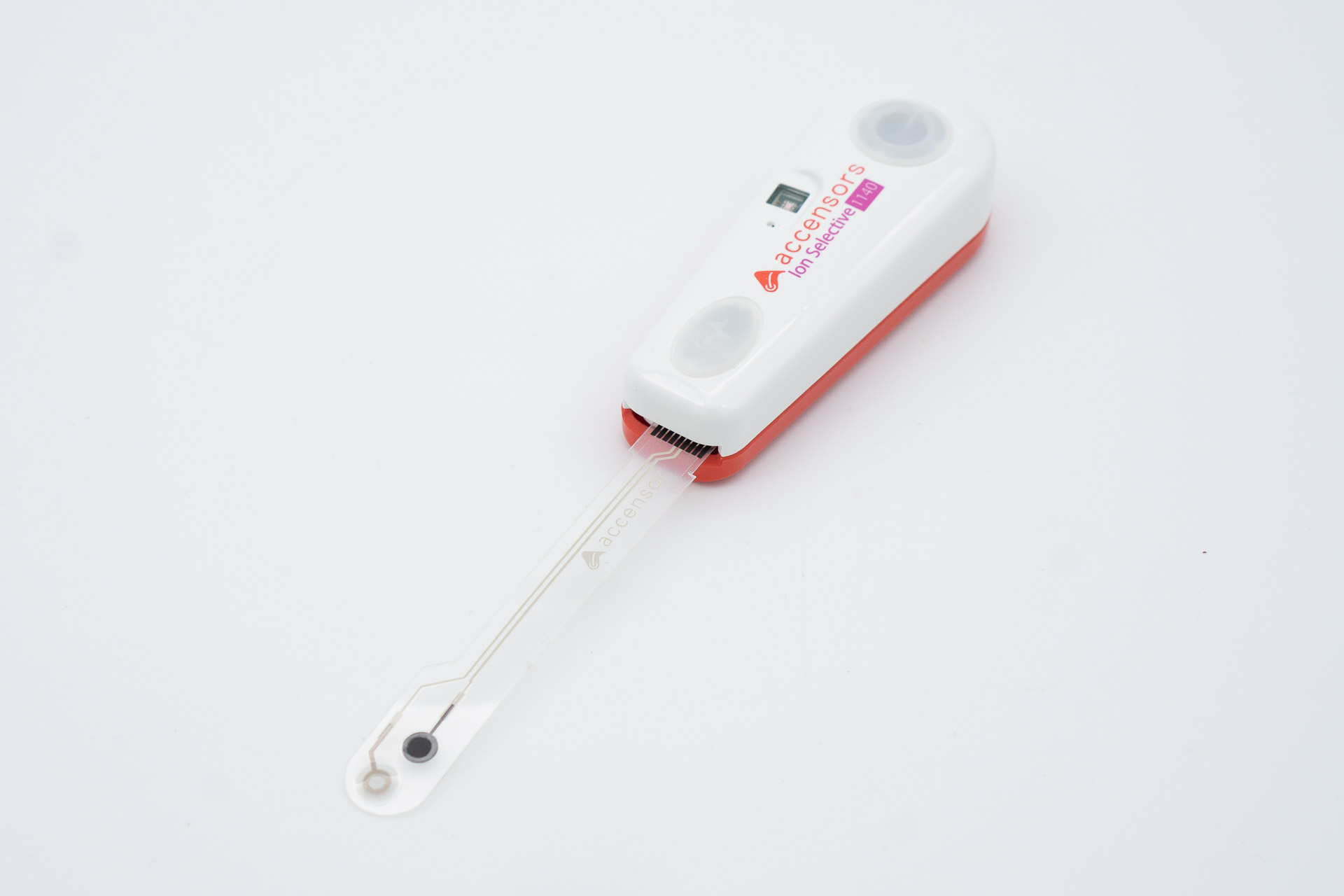

device ion selective 1140 pH-300

The device ion selective 1140 pH-300 provides an interface to record data from our associated sensors. Data is transmitted wirelessly and stored in an internal memory. Additionally, the accensors device records environmental parameters such as temperature, air humidity, motion, brightness and barometric pressure. The measurement data can be read out and visualized via app.Product includes:1 x device ion selective 1140 pH-3001 x USB 2.0 - USB-C charging cable

€499.00*
